Motion Control Products





1100 Series, Motion Control

  • Motion Control systems
  • Complete Package
  • Plug-and-Play
  • Quick and Easy to Install
  • Easy to Use
  • Digital Inputs / Outputs
  • Analog Inputs
  • Up to 4 Axes of Motion Control
  • Motion Control and PLC Functionalities in one Package
  • Externally Controlled
  • Stand-alone
  • Manual Control

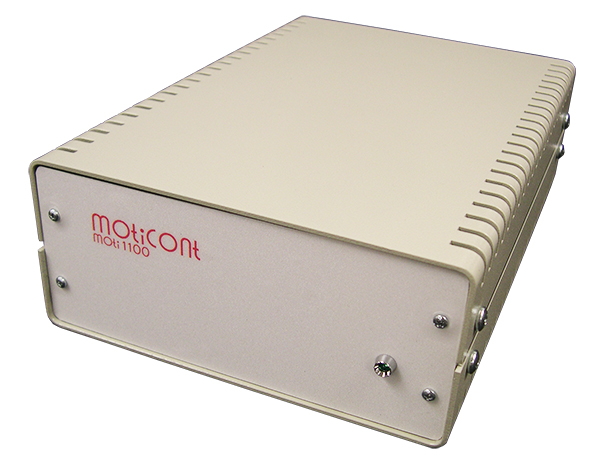

1100 Series

Enlarge

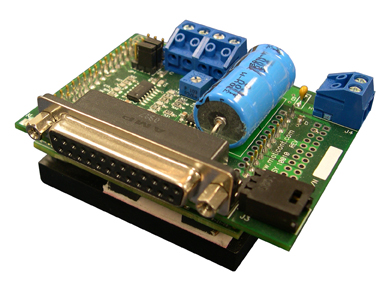

510 Series

  • Servo Motor Control Card
  • Runs DC and Brushless Servo Motors
  • Four Quadrant Regenerative Operation
  • Space Vector Modulation (SVM) Technology
  • Fully Digital State-of-the-art Design
  • Programmable Current, Velocity and Position Loops Gain Settings
  • Fully Configurable Current, Voltage, Position Limits
  • PIDF Velocity Loop
  • Up to 40 Amps Motor Output
  • +20 VDC to +80 VDC Power Supply
  • Protected Against Over Current
  • Built-in Signal Generator, Sinusoidal, Square Wave and Triangular
  • 0 ºC to 70 ºC Operating Temperature
  • Modular 2-Piece Power, Motor, Signal Connector
510 Series

Enlarge




600 Series

  • Motion Controller Card
  • Stand-alone
  • Externally Controlled
  • Manual Control
  • Up to 4 Axes of Motion Control
  • 16 Digital Inputs
  • 16 Digital Outputs
  • 3 Analog Inputs
  • Optical Encoder Inputs
  • Motion Control and PLC Functionalities in one Package

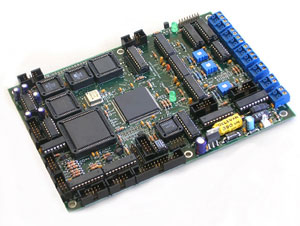

600 Series

Enlarge




710 Series

  • Servo Motor Control Card
  • Runs DC Servo Motors with Step and Direction Control Inputs
  • 20 Amp Motor Output
  • +18 VDC to +80 VDC Power Supply
  • PID Closed Loop Operation
  • Quadrature Encoder Feedback
  • Anti-Dithering Circuit Keeps Motor Silent
  • +5VDC, 50 ma Encoder Supply
  • Pulse By Pulse Motor Current Limiting
  • 0 to 20 Amp Current Limit Adjust Range
  • 25 KHz PWM Frequency
710 Series

Enlarge




800 Series

  • Run DC and Voice Coil Motors with PWM and Direction Control Inputs
  • 4 Amp Motor Output
  • +6 VDC to +30 VDC Power Supply
  • 0 ºC to 70 ºC Operating Temperature
  • Light: 0.36 Oz (10 gm)
  • PWM Frequency up to 40 KHz
800 Series

Enlarge




950 Series

  • Voice Coil and DC Servo Motor Driver
  • Ultra Small Size
  • Runs Two Motors Simultaneously
  • Low Cost
  • Analog Signal Control Inputs
  • +6 ~ +13.5 VDC
  • Supplied with mounting card for easy wire connection and mounting.
  • This driver does not accept feedback.

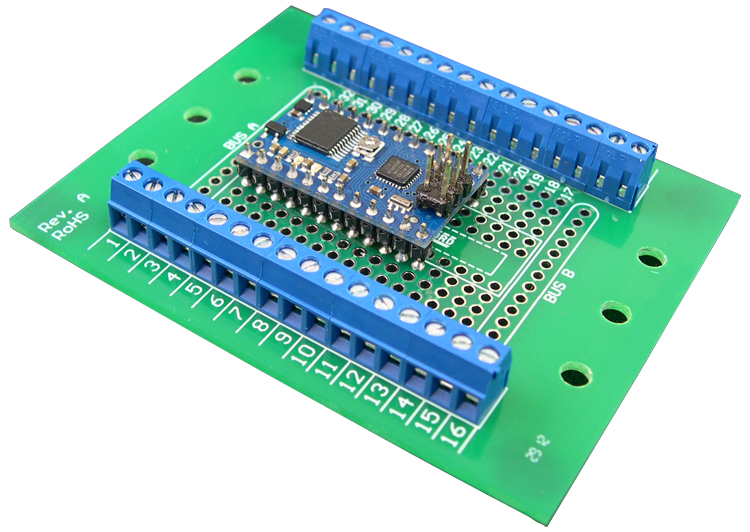

950 Series

Enlarge




1000 Series

  • Converts Two Channels of TTL Differential Signals to Two Channels of Single Ended Signals
  • Jumper Selectable 1 KOhm Pull-ups, 1 KOhm Pull-downs and 120 Ohm Line-to-Line Termination on all Inputs

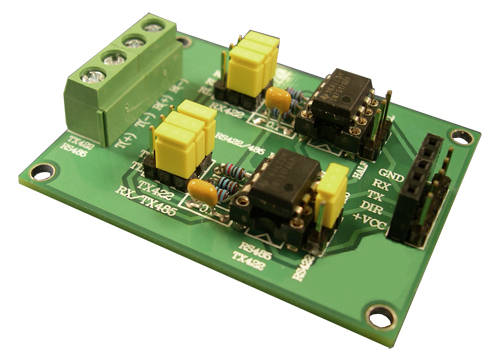

1000 Series

Enlarge




Inductive Filter Card

  • Reduces Motor's Ripple Current
  • 10 Amps Peak
IFC-01

Enlarge

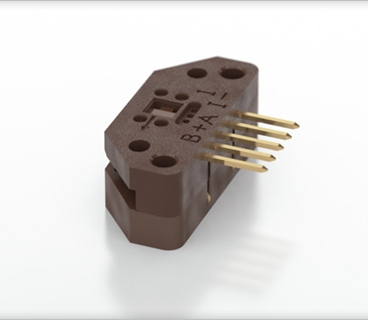

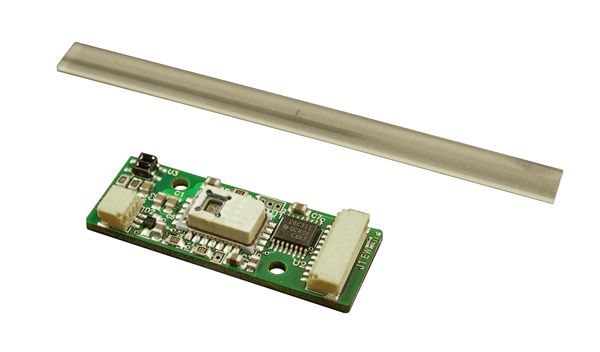

One-micron Optical Encoder Module

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.00004", 1 micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
OEM-001U-01

Enlarge




5.2 micron Optical Encoder Module

  • Small Size, 1.924" (48.8 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.07" (1.78 mm)
  • Low Power
  • Resolution, 0.0002", 5.2 micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
OEM-00520U-01

Enlarge




1.25-micron Optical Encoder Module

  • Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
OEM-00125U-01

Enlarge

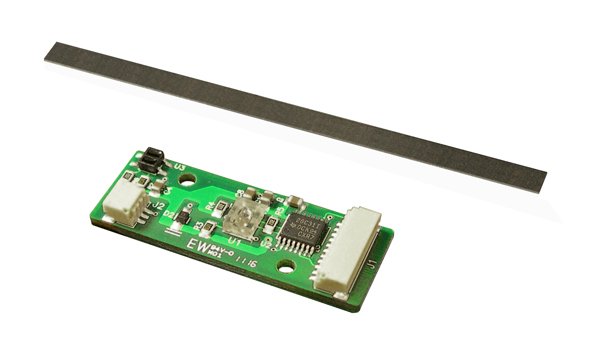

Thirty-micron Optical Encoder Module

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.0012", 29.95 Micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
OEM-030U-01

Enlarge




Optical Encoder Module Cable

  • Used with One-micron Optical Encoder Module
  • Used with Thirty-micron Optical Encoder Module
CBL-01

Enlarge




Optical Encoder Module Cable

  • Cable, 12 inch (300 mm)
  • Used with 510 Series
  • Used with 600 Series
  • Used with Thirty-micron Optical Encoder Module
CBL-02

Enlarge




Cable for Encoders and Stages

The CBL-03 is used to connect the motororized linear stages to the 100 Series of Motion Controllers.

CBL-03

Enlarge




Optical Encoder Module Cable

  • Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01
  • Used as an adapter to convert the existing connector on the board to a female DB9 connector
CBL-04

Enlarge




Optical Encoder Module Cable

  • Used with Thirteen-micron Optical Encoder Module
  • Used with Twenty Six-micron Optical Encoder Module
CBL-06

Enlarge




CBL-08

  • The CBL-08 is used to connect the 100 and 150 Series Controllers to motors
CBL-08

Enlarge




CBL-09

  • Cable, 12 inch (30 cm)
  • Used with 510 Series
  • This cable is used to interface the VCDS series stages with servo controller/driver
CBL-09

Enlarge




Twenty Six Micron Optical Encoder

  • Low Power
  • Resolution, 13 micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • Transmissive Device
OEM-250

Enlarge



Thirteen Micron Optical Encoder

  • Low Power
  • Resolution, 25.4 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • Transmissive Device
OEM-500

Enlarge





Linear Strip, 250Lines per Inch

LS-250

Enlarge






Linear Strip, 500 Lines per Inch

LS-500

Enlarge




Joysticks

  • Pre-wired Joystick
  • Motor Speed Proportional to the Tilt Angle
  • Three Speed Selection Keys
  • Long Life
JOYSTK

Enlarge

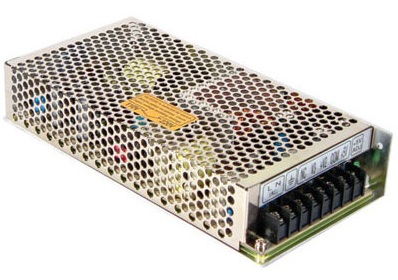

Switching Power Supply

  • Isolated Outputs and Grounds
  • Withstands 300VAC Surge Input for 5 Seconds
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • All using 105°C long life electrolytic capacitors
PS-125-01

Enlarge

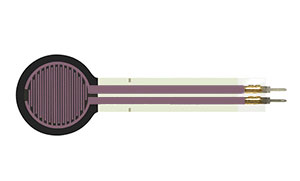

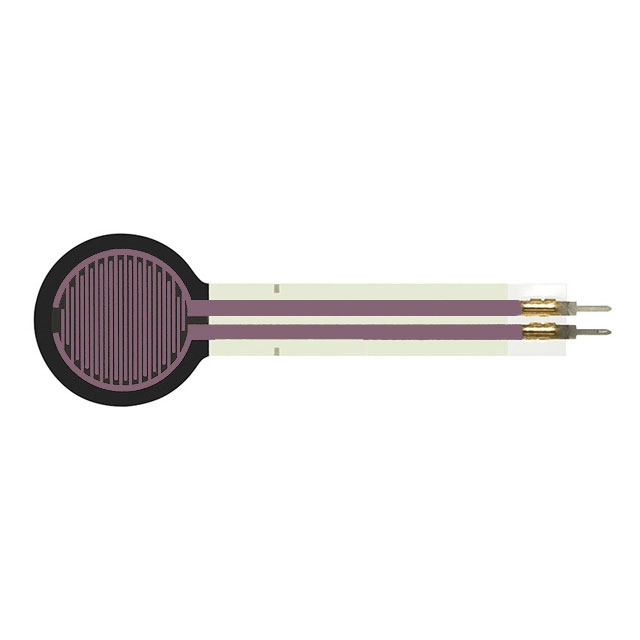

Force Sensor

  • Diameter: 0.5" (12.7 mm)
  • Length of flexible leads: 1.4" (35.56mm)
Force Sensor

Enlarge




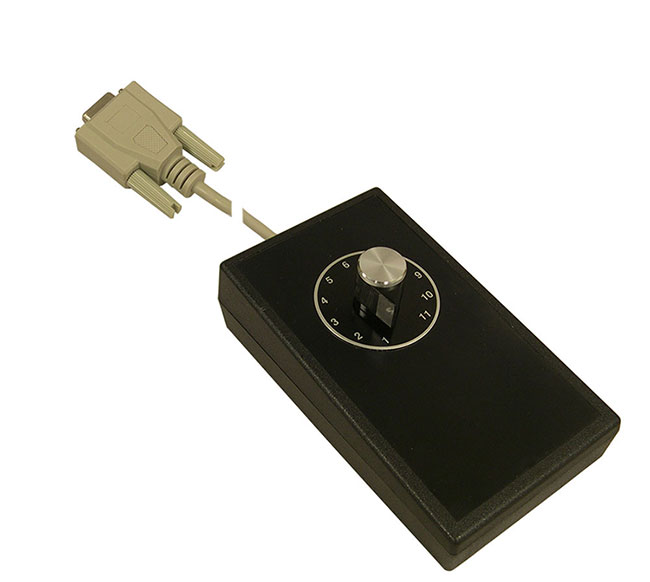

Switch Selector

  • 8-Position Switch Selector
  • 6 Feet (180 cm) of Cable Length
SW8-01

Enlarge
