Voice Coil Motor Driver
950 Series |
|
 |
|
|
A high performance, dual channel, cost effective DC Motor Driver to implement intelligent Motion Control with analog inputs.
Supplied with mounting card for easy wire connection and mounting.
This driver does not accept feedback. |
|
|
Features:
- Runs DC and Voice Coil Motors With Analog Signal Control Inputs
- Runs Two Motors Simultaneously
- 1 Amp Continuous, 3 Amps peak Motor Output per Channel
- +6 VDC to +12 VDC Power Supply
- 0 C to 70 C Operating Temperature
- Light: 0.36 Oz (10 gm)
- PWM Frequency: 9.7 KHz
- Available with DIN Rail Mount Clips
|
|
|
| & |
|
ELECTRICAL SPECIFICATIONS |
|
Supply Voltage |
+6 VDC to +12 VDC |
|
Phase Current |
0 to 1 Amps Continuous, 3 Amps Peak |
|
PWM Frequency |
9.7 kHz |
|

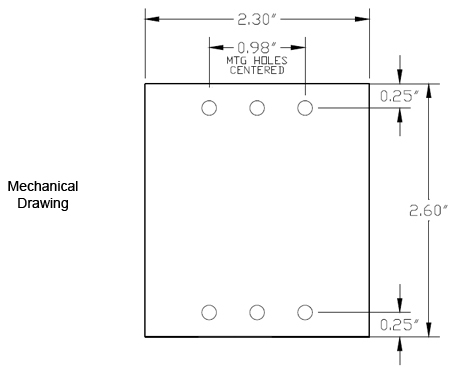

MECHANICAL SPECIFICATIONS |
|
Dimensions |
2.6" (66.0 mm) x 3.2" (81.3 mm) |
|
|
|
|
|

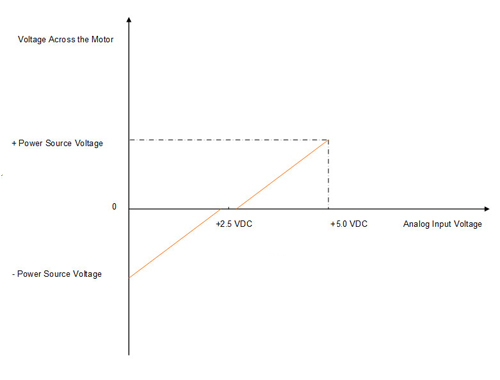

Pinout - Inputs
|
PIN |
Range |
Description |
|
ANALOG-1 |
0 ~ +5 VDC |
Analog Control
Input for Motor-1 |
|
ANALOG-2 |
0 ~ +5 VDC |
Analog Control
Input for Motor-2 |

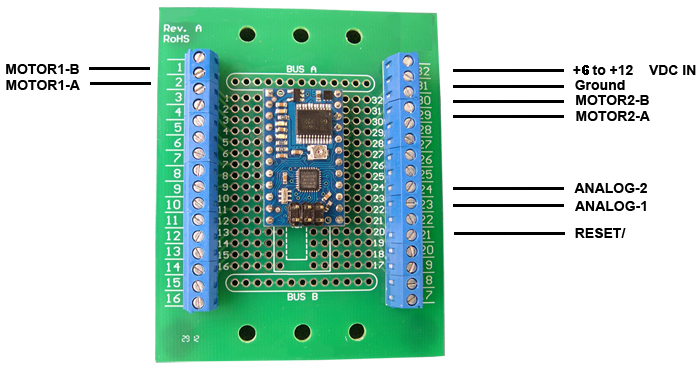

Pinout
- Power
|
PIN |
Description |
|
+6 ~ +12 VDC
IN |
+6 VDC to 12
VDC for Power Input |
|
GROUND |
Ground
Connection for Power
Supply and Input Signals |
|
MOTOR1-A |
Output to Drive
Motor 1 |
|
MOTOR1-B |
Output to Drive
Motor 1 |
|
MOTOR2-A |
Output to Drive
Motor 2 |
|
MOTOR2-B |
Output to Drive
Motor 2 |
|
|
|
|
|
|
|
