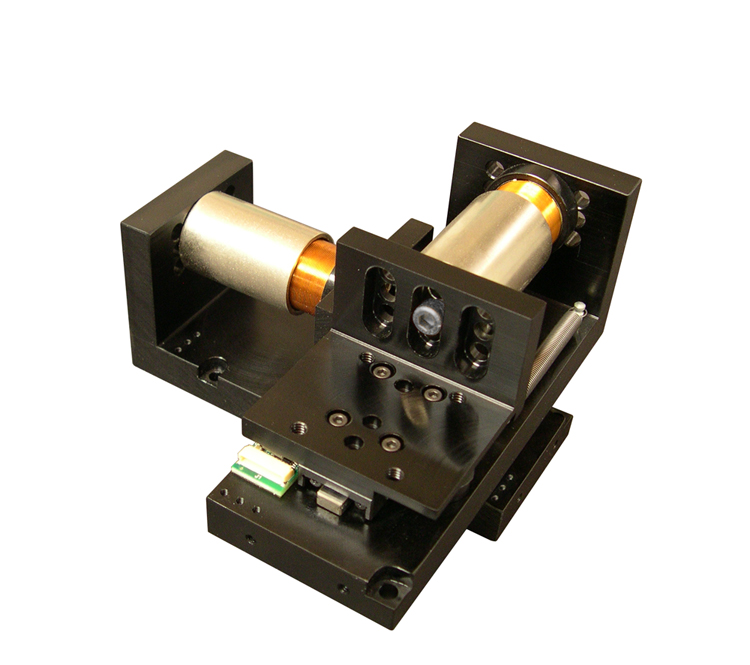

Two-axis Positioning Systems






The Single-axis Stages can be configured as XY, XZ and XYZ
  • Range of Motion: 0.970” to 5.2 inches (24.6 mm)
  • Positioning Resolution: 1 micron, 12.7 microns, 25.4 microns & 29.95 microns
  • Continuous Force: from 16.4 oz (4.6 N) to 25.0 lb (111.2 N)
  • Intermittent Force: 51.9 oz (14.4 N) to 79.0 lbs (351.3 N) at 10% duty cycle
  • Optional Return Spring
  • Configurable as XY, XZ, XYZ
  • Low Cost

Enlarge




Two-axis Servo Motor Driven Positioning Gantry Stage
  • Zero Backlash
  • Long System Life
  • High Speed Positioning
  • Compact Package
  • Integrated Position Feedback Sensor
  • High Force Generation
  • High Accuracy
  • Cog Free
  • High Repeatability
  • 1 Micron Resolution
GXY-280-280-01-01
Enlarge




Two-axis Servo Motor Driven Positioning Gantry Stage
  • Zero Backlash
  • Long System Life
  • High Speed Positioning
  • Compact Package
  • Integrated Position Feedback Sensor
  • High Force Generation
  • High Accuracy
  • Cog Free
  • High Repeatability
  • 25.4 Micron Resolution
GXY-280-280-01-26
Enlarge




Two-axis Servo Motor Driven Positioning Gantry Stage
  • Zero Backlash
  • Long System Life
  • High Speed Positioning
  • Compact Package
  • Integrated Position Feedback Sensor
  • High Force Generation
  • High Accuracy
  • Cog Free
  • High Repeatability
  • 1 Micron Resolution
GXY-280-280-02-01
Enlarge




Two-axis Servo Motor Driven Positioning Gantry Stage
  • Zero Backlash
  • Long System Life
  • High Speed Positioning
  • Compact Package
  • Integrated Position Feedback Sensor
  • High Force Generation
  • High Accuracy
  • Cog Free
  • High Repeatability
  • 25.4 Micron Resolution
GXY-280-280-02-26
Enlarge

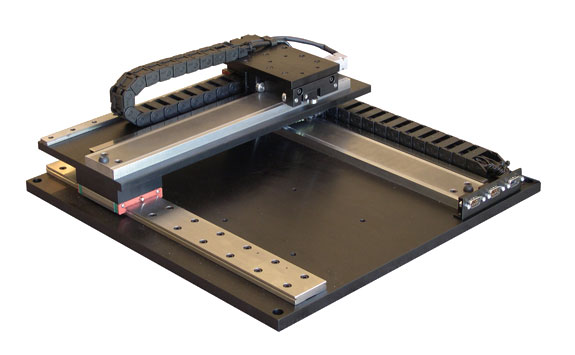

Two-axis Stepper Motor Driven Positioning Gantry Stage
  • Zero Backlash
  • Long System Life
  • Continuous Force in X and Y Directions
  • Peak Force: Up to 15 lbs (66 N)
  • Total Travel (typical): 10 inches (25 cm) by 10 inches (25 cm)
  • Working Area (typical): 8 inches (20 cm) by 8 inches (20 cm)
  • Open Loop Accuracy (typical) with Linear Stepper Motor: 0.001 inches / foot (85 microns / meter)
  • Open Loop Repeatability (typical) with Linear Stepper Motor: 0.0004 inches / foot (33 microns / meter)
  • Optional Incremental Encoder for Closed Loop Operation
GXY-254-254-01
