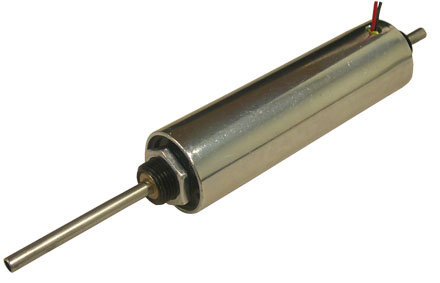

Direct Drive Linear Motors
Economy Series



Linear Voice Coil Motors with Internal Bearing





Linear Voice Coil Motors without Bearing


These linear motors are supplied with an internal shaft supported by two linear bearings.

Applying a voltage across the terminals of the motor causes the motor to move to one direction. Reversing the polarity of the applied voltage will move the motor to the opposite direction. The generated force is proportional to the current that flows through the motor coil. This force is almost constant in the specified stroke range of the motor.

The non-commutated motor construction increases reliability. The direct coupling of the motor to the load allows for fast acceleration / deceleration and high speed operation.

Very high speeds and accelerations can be easily achieved.

This type of motor may be used in conjunction with a position sensor and a motion controller for accurate positioning.


Mounting hardware in various lengths and styles is available and may be obtained at



  • High Acceleration
  • High Speed
  • Cog Free
  • Increased throughput, a Function of High Acceleration
  • Replacement for Pneumatic Systems

Housing Outside Diameter, 0.750 inch, 19.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length

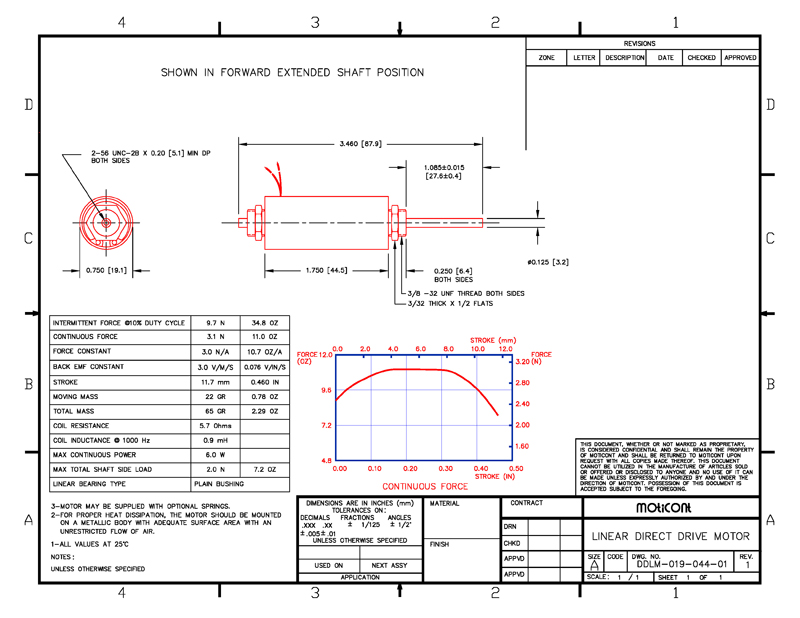

DDLM-019-044-01 0.460 inch 11.0 oz 34.8 oz 1.750 inch
Datasheet in PDF 11.7 mm 3.1 N 9.7 N 44.5 mm
Drawing quick view

Housing Outside Diameter, 0.750 inch, 19.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length

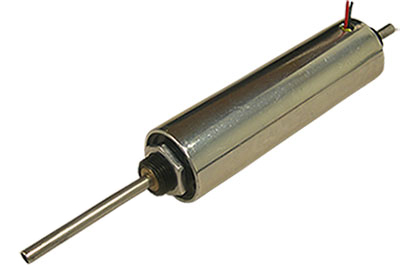

DDLM-019-070-01 0.960 inch 10.1 oz 32.1 oz 2.750 inch
Datasheet in PDF 24.4 mm 2.8 N 8.9 N 69.9 mm
Drawing quick view

Housing Outside Diameter, 1.500 inch, 38.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length

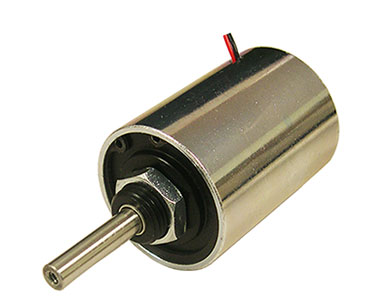

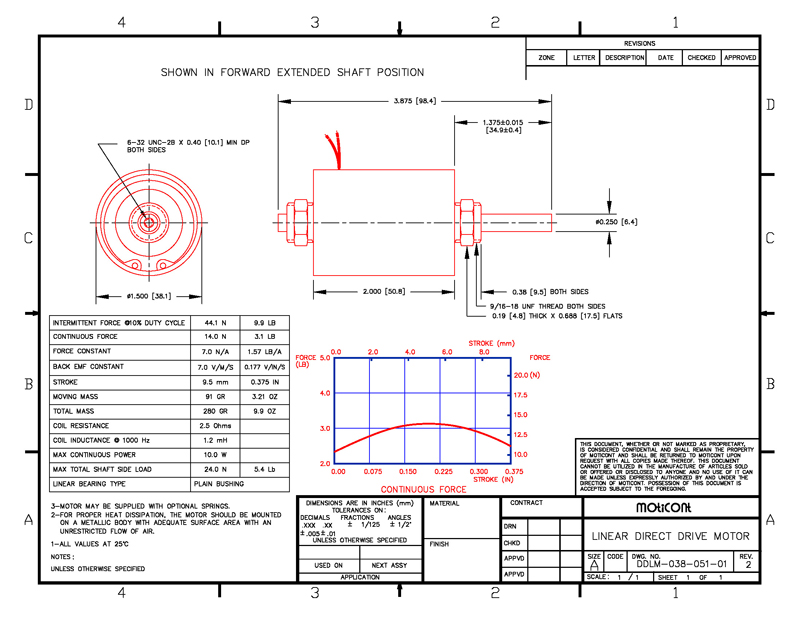

DDLM-038-051-01 0.375 inch 3.1 lb 9.9 lb 2.00 inch
Datasheet in PDF 9.5 mm 14 N 44.1 N 50.8 mm
Drawing quick view
