GENERAL
SPECIFICATIONS
|
|
Intermittent
Force @ 10% Duty
Cycle |
108.0 |
lb |
|
480.6 |
N |
|
Continuous Force @ 25
°C |
34.0 |
lb |
|
151.3 |
N |
|
Continuous Force @
Tmax |
29.0 |
lb |
|
129.0 |
N |
|
Continuous Power |
126 |
W |
|
Motor Constant |
3.0 |
lb/
W^0.5 |
|
13.5 |
N/
W^0.5 |
|
Coil Assembly
Length |
12.65 |
in |
|
321 |
mm |
|
ELECTRICAL
SPECIFICATIONS
|
|
Peak Current @ 10%
Duty Cycle |
6.2 |
10.7 |
A |
|
Continuous Current @
Tmax |
1.7 |
2.9 |
A |
|
Force Constant |
17.4 |
10.1 |
lb/A |
|
77.4 |
44.5 |
N/A |
|
Back EMF |
2.0 |
1.1 |
V/in/s |
|
77.4 |
44.5 |
V/m/s |
|
Resistance @ 25 °C
|
33.2 |
11.1 |
Ohm |
|
Inductance @ 1 KHz |
11.5 |
3.8 |
mH |
|
|
Part No. |
Description |
|

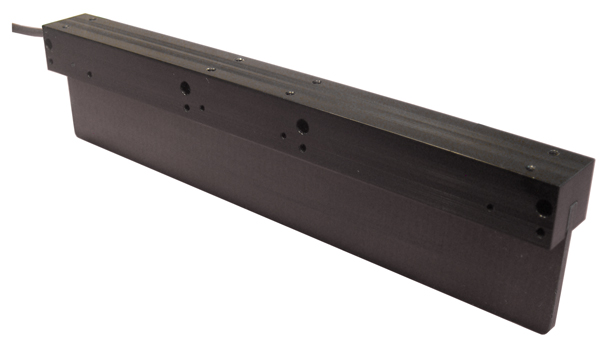

LBF-032-048-321-01 |
Forcer,
Continuous: Force
9.3 lb (41.4
N),
Intermittent
Force @ 10% Duty
Cycle: 29.4 lb (130.8 N)
Buy Online
 |
One or a combination of the following magnetic tracks is required. |
|
Part No. |
Description |
|

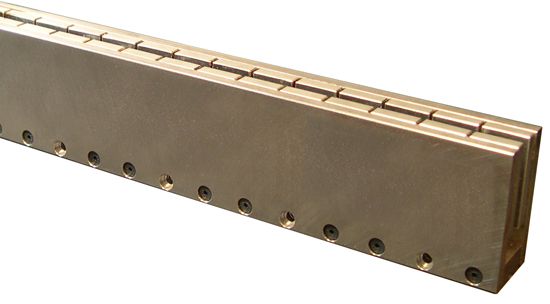

LBM-032-057-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-243-01 |
Magnetic Track, Length: 9.55 in (243 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-365-01 |
Magnetic Track, Length: 14.35 in (365 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-608-01 |
Magnetic Track, Length: 23.95 in (608 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
|
|
|
