GENERAL
SPECIFICATIONS |
|
Intermittent
Force @ 10% Duty
Cycle |
8.7 |
lb |
|
38.7 |
N |
|
Continuous Force @ 25
°C |
2.8 |
lb |
|
12.2 |
N |
|
Continuous Force @
Tmax |
2.1 |
lb |
|
9.3 |
N |
|
Continuous Power |
20 |
W |
|
Motor Constant |
0.6 |
lb/
W^0.5 |
|
2.7 |
N/
W^0.5 |
|
Coil Assembly
Length |
3.2 |
in |
|
81.3 |
mm |
|
|
ELECTRICAL
SPECIFICATIONS |
|
Peak Current @ 10%
Duty Cycle |
4.6 |
A |
|
Continuous Current @
Tmax |
1.4 |
A |
|
Force Constant |
1.4 |
lb/A |
|
6.4 |
N/A |
|
Back EMF |
0.16 |
V/in/s |
|
6.4 |
V/m/s |
|
Resistance @ 25 °C
|
5.5 |
Ohm |
|
Inductance @ 1 KHz |
2.1 |
mH |
|
|
Part No. |
Description |
|
LBF-021-029-081-01 |
Forcer,
Continuous: Force 2.8 lb (12.2
N),
Intermittent
Force @ 10% Duty
Cycle: 8.7 lb (38.7 N)
Buy Online
 |

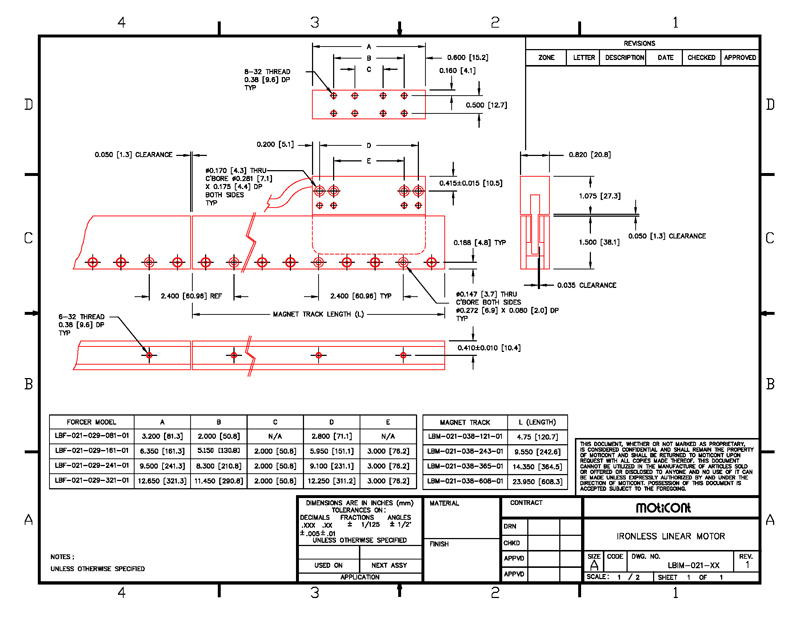

One or a combination of the following magnetic tracks is required. |
|
Part No. |
Description |
|

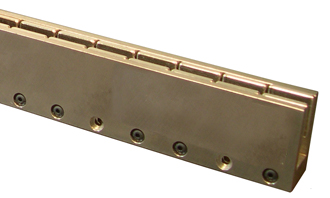

LBM-021-038-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-243-01 |
Magnetic Track, Length: 9.55 in (243 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-365-01 |
Magnetic Track, Length: 14.35 in (365 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-608-01 |
Magnetic Track, Length: 23.95 in (608 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
|
