GENERAL
SPECIFICATIONS |
|
Intermittent
Force @ 10% Duty
Cycle |
23.1 |
lb |
|
102.9 |
N |
|
Continuous Force @ 25
°C |
7.3 |
lb |
|
32.6 |
N |
|
Continuous Force @
Tmax |
5.5 |
lb |
|
24.3 |
N |
|
Continuous Power |
49 |
W |
|
Motor Constant |
1.0 |
lb/
W^0.5 |
|
4.6 |
N/
W^0.5 |
|
Coil Assembly
Length |
3.2 |
in |
|
81.3 |
mm |
|
|
ELECTRICAL
SPECIFICATIONS |
|
Peak Current @ 10%
Duty Cycle |
16.1 |
A |
|
Continuous Current @
Tmax |
3.8 |
A |
|
Force Constant |
1.4 |
lb/A |
|
6.4 |
N/A |
|
Back EMF |
0.16 |
V/in/s |
|
6.4 |
V/m/s |
|
Resistance @ 25 °C
|
1.9 |
Ohm |
|
Inductance @ 1 KHz |
0.7 |
mH |
|
|
Part No. |
Description |
|

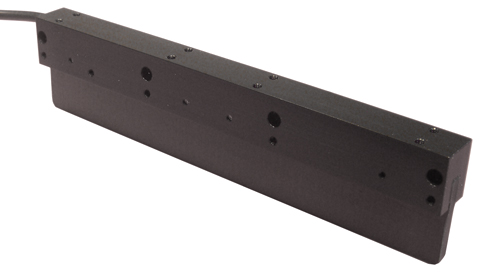

LBF-021-029-241-01 |
Forcer,
Continuous: Force 7.3 lb
(32.6
N),
Intermittent
Force @ 10% Duty
Cycle: 23.1 lb (102.9 N)
Buy Online
 |
One or a combination of the following magnetic tracks is required. |
|
Part No. |
Description |
|
LBM-021-038-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-243-01 |
Magnetic Track, Length: 9.55 in (243 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-365-01 |
Magnetic Track, Length: 14.35 in (365 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
LBM-021-038-608-01 |
Magnetic Track, Length: 23.95 in (608 mm), Width: 0.82 in, (20.8 mm),
Height:1.50 in (38.1 mm)
Buy Online
|
|
|
