Linear Motor with Internal Shaft & Bearing

GVCM-095-089-01




Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-089-01S06 2.50 inch 25.0 lb 79.0 lb 3.50 inch
Datasheet in PDF 63.5 mm 111.2 N 351.3 N 88.9 mm

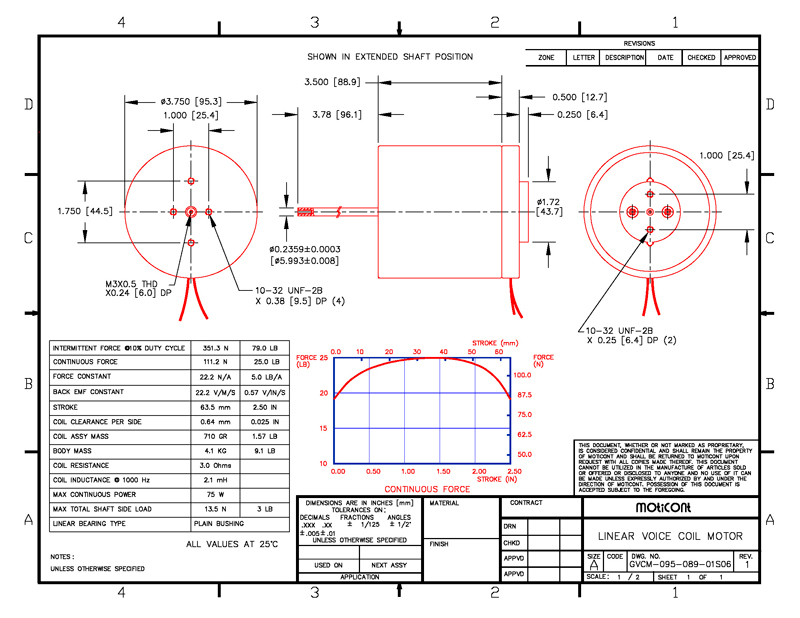

Drawing quick view
