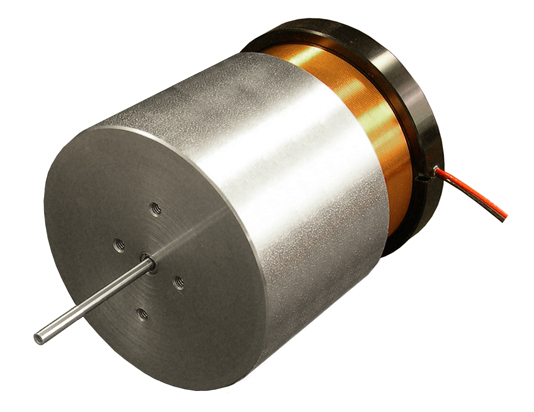

Linear Motor with Internal Shaft & Bearing

GVCM-095-064-01




Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-064-01 1.50 inch 24.4 lb 77.1 lb 2.50 inch
Datasheet in PDF 38.1 mm 108.6 N 343.1 N 63.5 mm

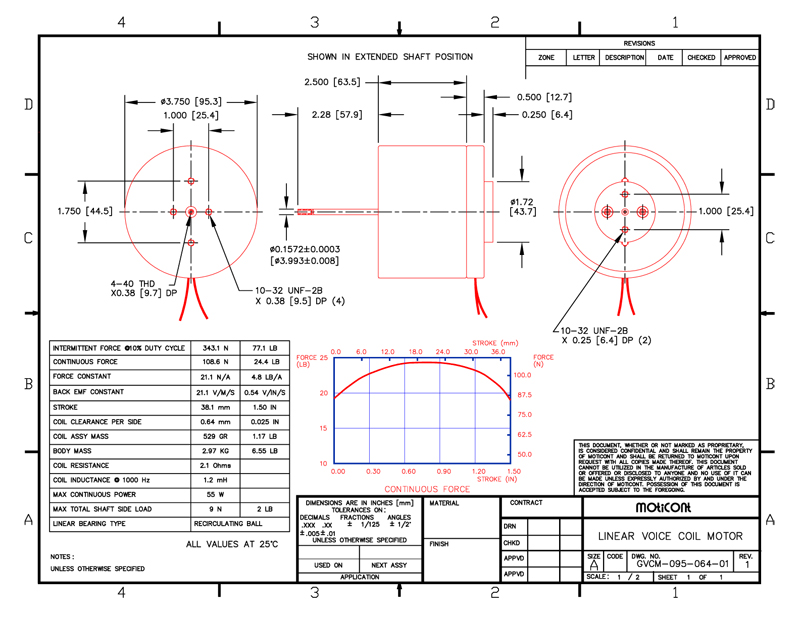

Drawing quick view
