Hollow Core Linear Voice Coil Motors

HVCM-095-064-051-01




Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-095-064-051-01 1.50 inch 15.4 lb 48.6 lb 2.50 inch 2.00 inch
Datasheet in PDF 38.1 mm 68.3 N 215.9 N 63.5 mm 50.8 mm

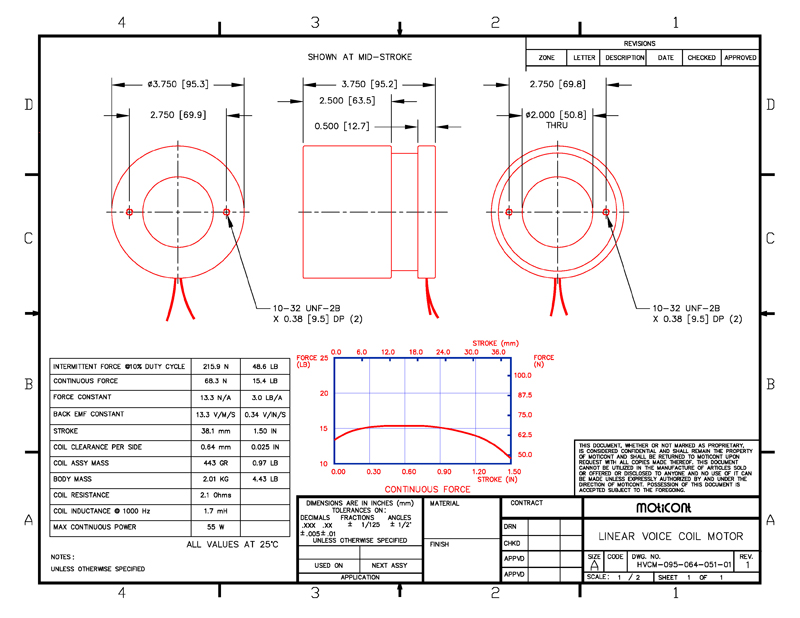

Drawing quick view
