Hollow Core Linear Voice Coil Motors

HVCM-095-051-051-01




Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-095-051-051-01 1.00 inch 16.1 lb 50.8 lb 2.00 inch 2.00 inch
Datasheet in PDF 25.4 mm 71.4 N 225.8 N 50.8 mm 50.8 mm

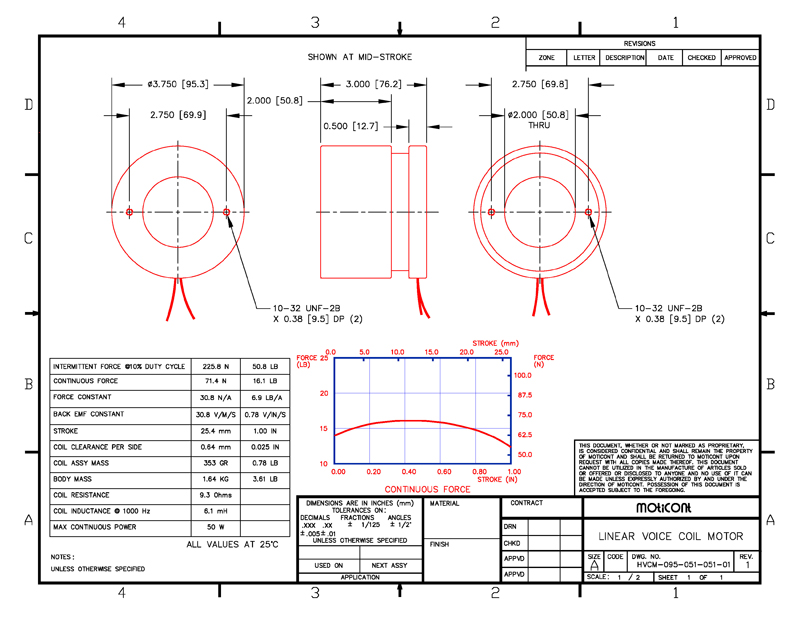

Drawing quick view
