Voice Coil Driven Stage

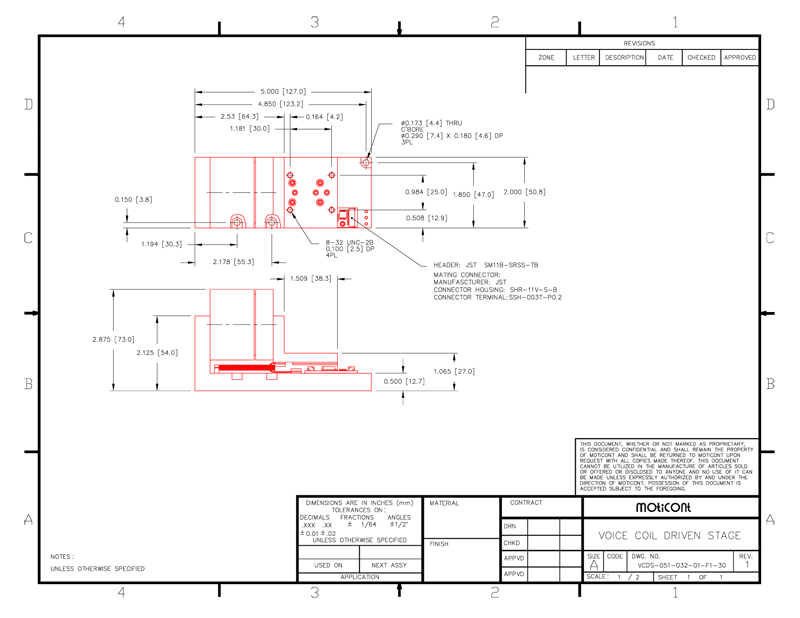

VCDS-051-032-01-F1-30

Previous Product

 Next Product    Download in PDF Buy Online View Cart



Part No. Description
VCDS-038-038-01-F1-30 Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 30 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

89.9 N 20.0 lb
Continuous Force 28.2 N 6.3 lb

Force Constant

8.4 N/A 1.9 lb/A
BACK EMF Constant 8.4 V/M/S 0.21 V/in/S

Stroke

24.6 mm 0.97 in
Moving Mass 181 gr

6.4

oz

Total Mass

886 gr

31.3

oz

Coil Resistance

2.2 Ohm
Coil Inductance at 1000 Hz  0.8 mH

Continuous Power

25 W

Customized solutions can be provided upon request.
