Linear Motor, LVCM-051-025-01

Housing Outside Diameter, 1.750 inch, 44.4 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-025-01	0.50	inch	5.3	lb	16.9	lb	1.00	inch
Datasheet in PDF	12.7	mm	22.7	N	74.8	N	25.4	mm

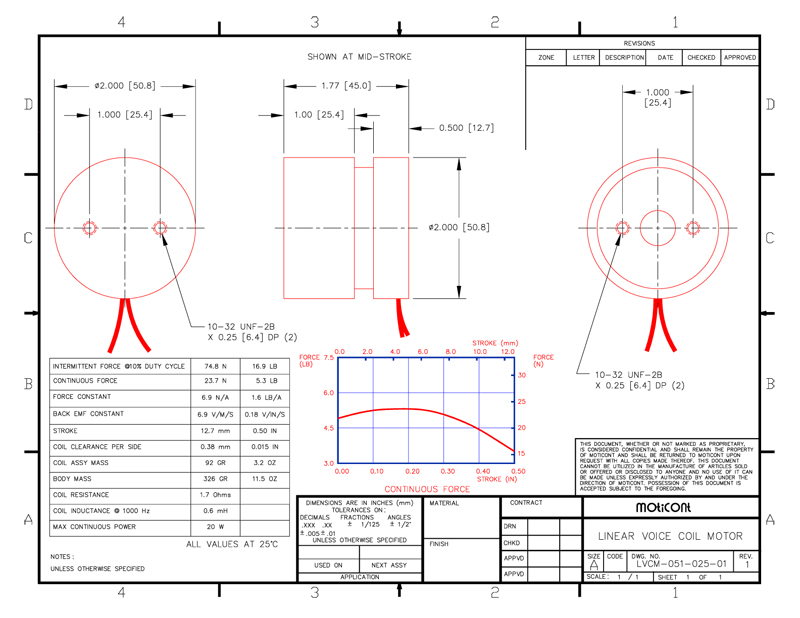

Drawing quick view
