Linear Voice Coil Motor

LVCM-016-010-01



Housing Outside Diameter, 0.625 inch, 15.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-016-010-01 0.125 inch 5.9 oz 18.6 oz 0.375 inch
Datasheet in PDF 3.2 mm 1.6 N 5.2 N 9.5 mm

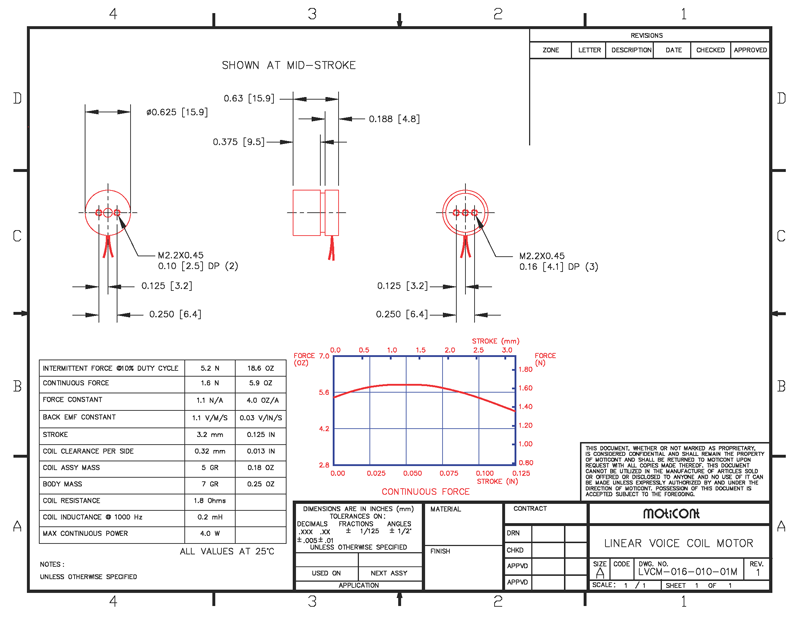

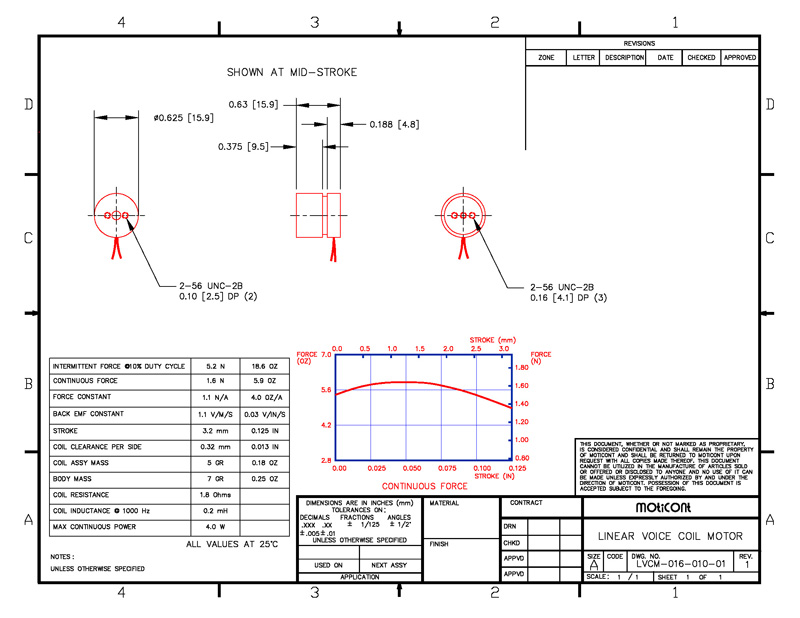

Drawing quick view
