GENERAL
SPECIFICATIONS
|
|
Intermittent
Force @ 10% Duty
Cycle |
55.3 |
lb |
|
246.1 |
N |
|
Continuous Force @ 25
°C |
17.5 |
lb |
|
77.9 |
N |
|
Continuous Force @
Tmax |
15.0 |
lb |
|
66.7 |
N |
|
Continuous Power |
66 |
W |
|
Motor Constant |
2.2 |
lb/
W^0.5 |
|
9.6 |
N/
W^0.5 |
|
Coil Assembly
Length |
6.35 |
in |
|
1.61 |
mm |
|
ELECTRICAL
SPECIFICATIONS
|
|
Peak Current @ 10%
Duty Cycle |
11.0 |
A |
|
Continuous Current @
Tmax |
3.0 |
A |
|
Force Constant |
5.0 |
lb/A |
|
22.2 |
N/A |
|
Back EMF |
0.6 |
V/in/s |
|
22.2 |
V/m/s |
|
Resistance @ 25 °C
|
5.5 |
Ohm |
|
Inductance @ 1 KHz |
1.9 |
mH |
|
|
Part No. |
Description |
|

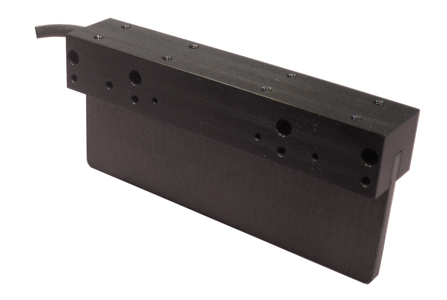

LBF-032-048-161-01 |
Forcer,
Continuous: Force 17.5 lb (77.9
N),
Intermittent
Force @ 10% Duty
Cycle: 55.3 lb (246.1 N)
Buy Online
 |
One or a combination of the following magnetic tracks is required. |
|
Part No. |
Description |
|
LBM-032-057-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-243-01 |
Magnetic Track, Length: 9.55 in (243 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-365-01 |
Magnetic Track, Length: 14.35 in (365 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
LBM-032-057-608-01 |
Magnetic Track, Length: 23.95 in (608 mm), Width: 1.25 in, (32 mm),
Height: 2.25 in (57 mm)
Buy Online
|
|
|
|
|
