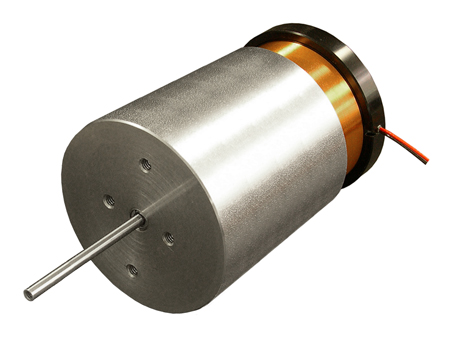

Linear Motor with Internal Shaft & Bearing

GVCM-070-064-01




Housing Outside Diameter, 2.750 inch, 69.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-070-064-01 1.50 inch 14.4 lb 45.5 lb 2.50 inch
Datasheet in PDF 38.1 mm 64.1 N 202.5 N 63.5 mm

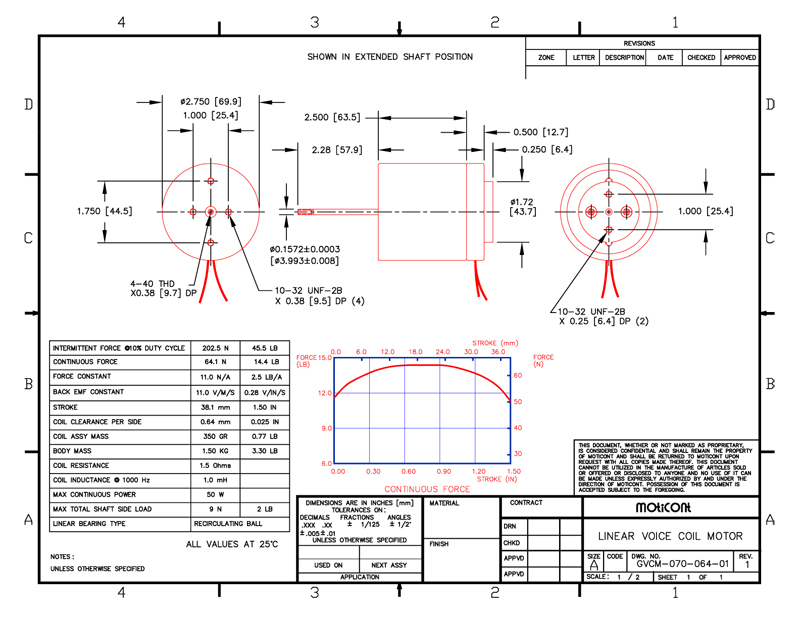

Drawing quick view
