Voice Coil Driven Stage
VCDS-025-038-02-F2-01

Comparison Table





Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 2.0 lb (9.2 N)
  • Intermittent Force: 6.4 lb (28.8 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-025-038-02-F2-01
Enlarge
Datasheet in PDF

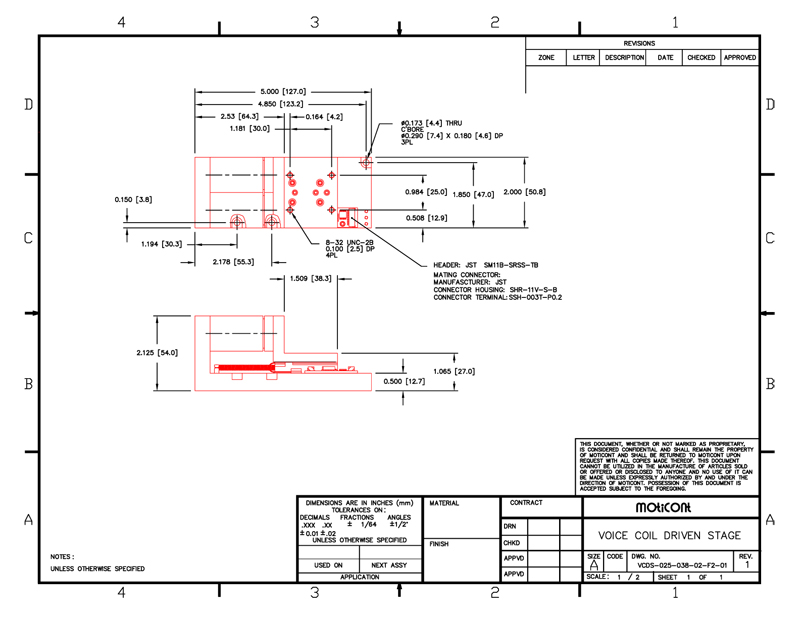

Drawing quick view


STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

28.8 N

6.4

lb
Continuous Force 9.2 N

2.0

lb

Force Constant

3.9 N/A

0.88

lb/A
BACK EMF Constant 3.9 V/M/S

0.10

V/in/S

Stroke

24.6 mm

0.97

in
Moving Mass 169 gr

6.0

oz

TotalMass

673 gr

23.7

oz

Coil Resistance

3.7 Ohm

Coil Inductance at 1000 Hz

1.2 mH

Continuous Power

20 W

Pin Assignment

Pin

Description

1

+5 VDC Power

2

A- Channel of Quadrature Encoder

3

B+ Channel of Quadrature Encoder

4

A+ Channel of Quadrature Encoder

5

Return for +5 VDC Power

6

Reference Signal, Active High

7

B- Channel of Quadrature Encoder

8

Motor Minus

9

Motor Plus

 Customized solutions can be provided upon request.
