Linear Motor with Internal Shaft & Bearing

GVCM-019-032-02




Housing Outside Diameter, 0.750 inch, 19.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-019-032-02 0.875 inch 7.4 oz 23.3 oz 1.250 inch
Datasheet in PDF 22.2 mm 2.1 N 6.5 N 31.8 mm

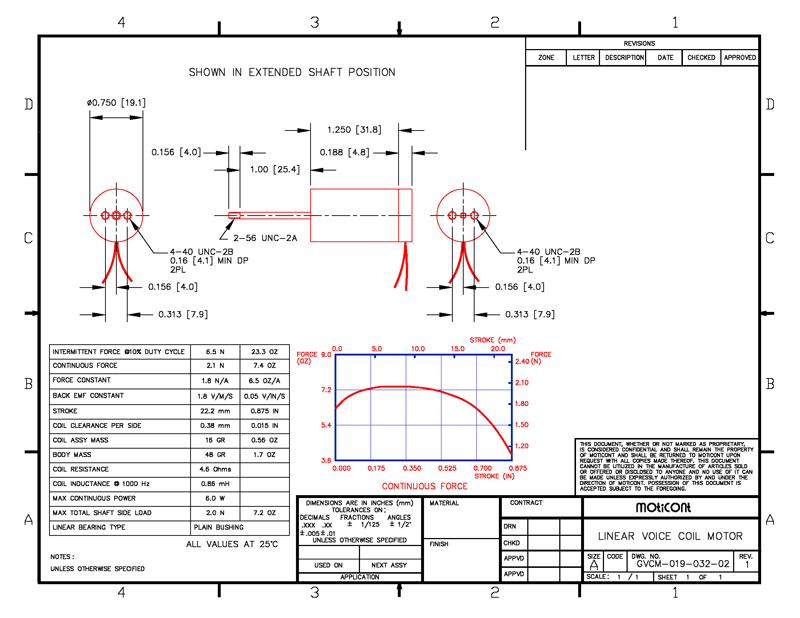

Drawing quick view
