Linear Motor with Internal Shaft & Bearing, GVCM-016-010-01

Housing Outside Diameter, 0.625 inch, 15.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-010-01	0.125	inch	5.0	oz	15.7	oz	0.375	inch
Datasheet in PDF	3.2	mm	1.4	N	4.4	N	9.5	mm

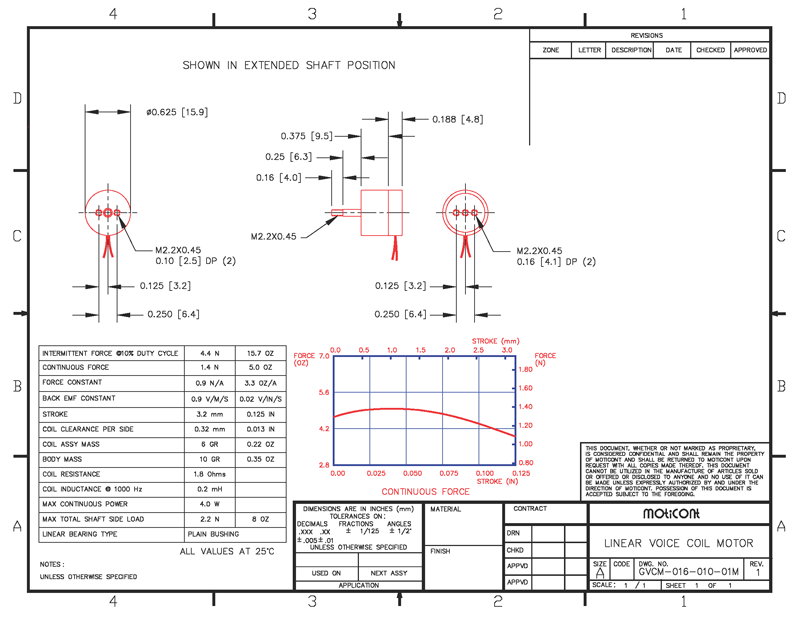

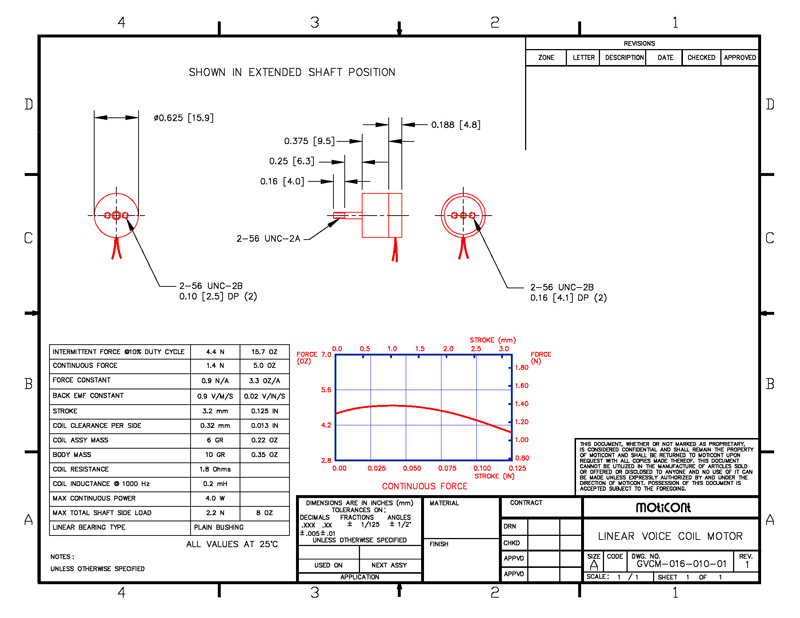

Drawing quick view
