        Motor Driver
        900-01

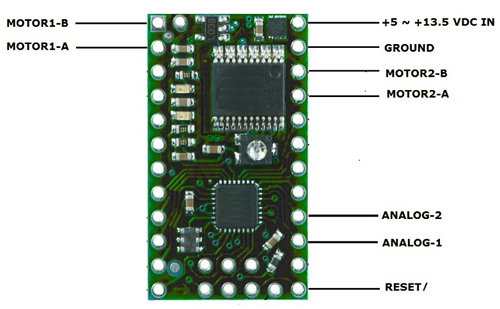

DC Motor Driver with Analog Input, Dual Channel
item #: 900-01

This product is currently not available.

Availability:   Not Available



Unit Price:
1 piece: $296.24
2-4 pieces: $281.43
5-9 pieces: $267.36
10-24 pieces: $254.00

Prices for larger quantities are significantly less and may be obtained
by contacting us or by clicking         Request for Quote



Runs DC and Voice Coil Motors With Analog Signal Control Inputs
Runs Two Motors Simultaneously
1 Amp Continuous, 3 Amps peak Motor Output per Channel
+6 VDC to +13.5 VDC Power Supply
0ºC to 70ºC Operating Temperature
Light Weight
PWM Frequency: 9.7 KHz
This driver does not accept feedback.

ELECTRICAL SPECIFICATIONS

Supply Voltage +6 VDC to +13.5 VDC
Phase Current 0 to 1 Amps Continuous, 3 Amps Peak
PWM Frequency 9.7 kHz


MECHANICAL SPECIFICATIONS

Weight: 0.36 Oz (10 gm)
Dimensions: 1.20" (30.5 mm) x 0.70" (17.8 mm)
Mounting Pattern: 1.2" x 0.7" 24-pin DIP package.
