Linear Motor Driven Actuator



Linear Voice Coil Motor Driven Actuator
LMA-051-051-01-26
Linear Motor Actuator

Range of Motion: 0.7 (17.8 mm) Max
Positioning Resolution: 0.0010" (26 microns)
Continuous Force: 6.0 lb (26.7 N) at 33 Watts
Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle at 330 Watts
Unit Price for 1 Piece: $4,221.19
Quantity discount will apply automatically.
Availability:  Will ship within ten weeks

Linear Voice Coil Motor Driven Actuator
LMA-051-064-01-26
Linear Motor Actuator

Range of Motion: 1.2 (30.5 mm) Max
Positioning Resolution: 0.0010" (26 microns)
Continuous Force: 6.4 lb (28.4 N) at 36 Watts
Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle at 360 Watts
Unit Price for 1 Piece: $4,280.32
Quantity discount will apply automatically.
Availability:  Will ship within ten weeks

Linear Voice Coil Motor Driven Actuator
LMA-051-089-01-26
Linear Motor Actuator

Range of Motion: 2.2 (55.9 mm) Max Max
Positioning Resolution: 0.0010" (26 microns)
Continuous Force: 6.0 lb (26.7 N) at 40 Watts
Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle at 400 Watts
Unit Price for 1 Piece: $4,477.84
Quantity discount will apply automatically.
Availability:  Will ship within two weeks

Linear Voice Coil Motor Driven Actuator

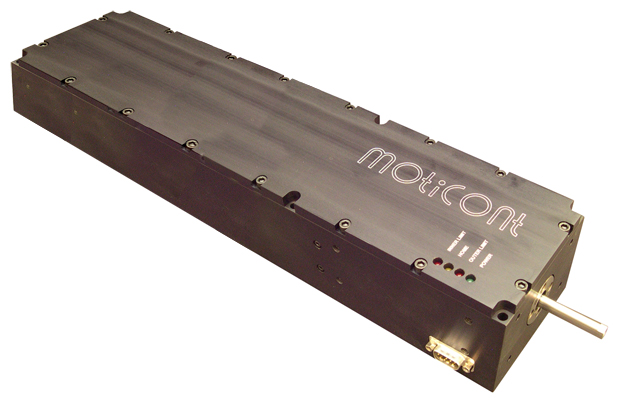

LMA-051-165-01-26
Linear Motor Actuator

Range of Motion: 5.2 (132.1 mm) Max
Positioning Resolution: 0.0010" (26 microns)
Continuous Force: 3.2 lb (14.2 N) at 50 Watts
Intermittent Force: 10.1 lbs (44.9 N) at 10% duty cycle at 500 Watts
Unit Price for 1 Piece: $12,252.09
Quantity discount will apply automatically.
Availability:  Will ship within ten weeks
