DC and Brushless Servo Motor Driver

510 Series

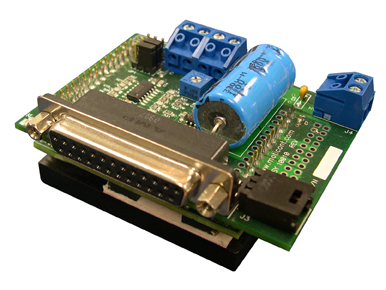

510 series servo motor driver

Enlarge


This series of drivers is a high performance, cost effective servo motor driver to implement intelligent motion control. The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density.

This series is designed to drive voice coil, brush-type and brushless DC motors at a high switching frequency. They receive step and direction signals or analog signal from motion controller.

Datasheet in PDF
Features:
  • Runs DC and Brushless Servo Motors
  • Four Quadrant Regenerative Operation
  • Space Vector Modulation (SVM) Technology
  • Fully Digital State-of-the-art Design
  • Programmable Current, Velocity and Position Loops Gain Settings
  • Fully Configurable Current, Voltage, Position Limits
  • PIDF Velocity Loop
  • PID + FF Position Loop
  • 12 Amps Motor Output
  • +20 VDC to +80 VDC Power Supply
  • Protected Against Over Current
  • Built-in Signal Generator, Sinusoidal, Square Wave and Triangular
  • 20 KHz PWM Frequency
  • No Tachometer Feedback Needed
  • 0 ºC to 70 ºC Operating Temperature
  • Modular 2-Piece Power, Motor, Signal Connector
Modes of Operation:
  • Current
  • Velocity
  • Position

Command Source:

  • Encoder Following
  • ±10 V Analog
  • Step and Direction

Feedback Supported:

  • Hall Effect Sensor
  • Incremental Encoder
  • ±10 V Analog
  • Auxiliary Incremental Encoder





Part No. Description
510-01 Servo Motor Driver, up to +80 VDC Power Supply, 12 Amps Maximum Current

510-02 Servo Motor Driver, up to +80 VDC Power Supply, 20 Amps Maximum Current

510-03 Servo Motor Driver, up to +80 VDC Power Supply, 40 Amps Maximum Current
